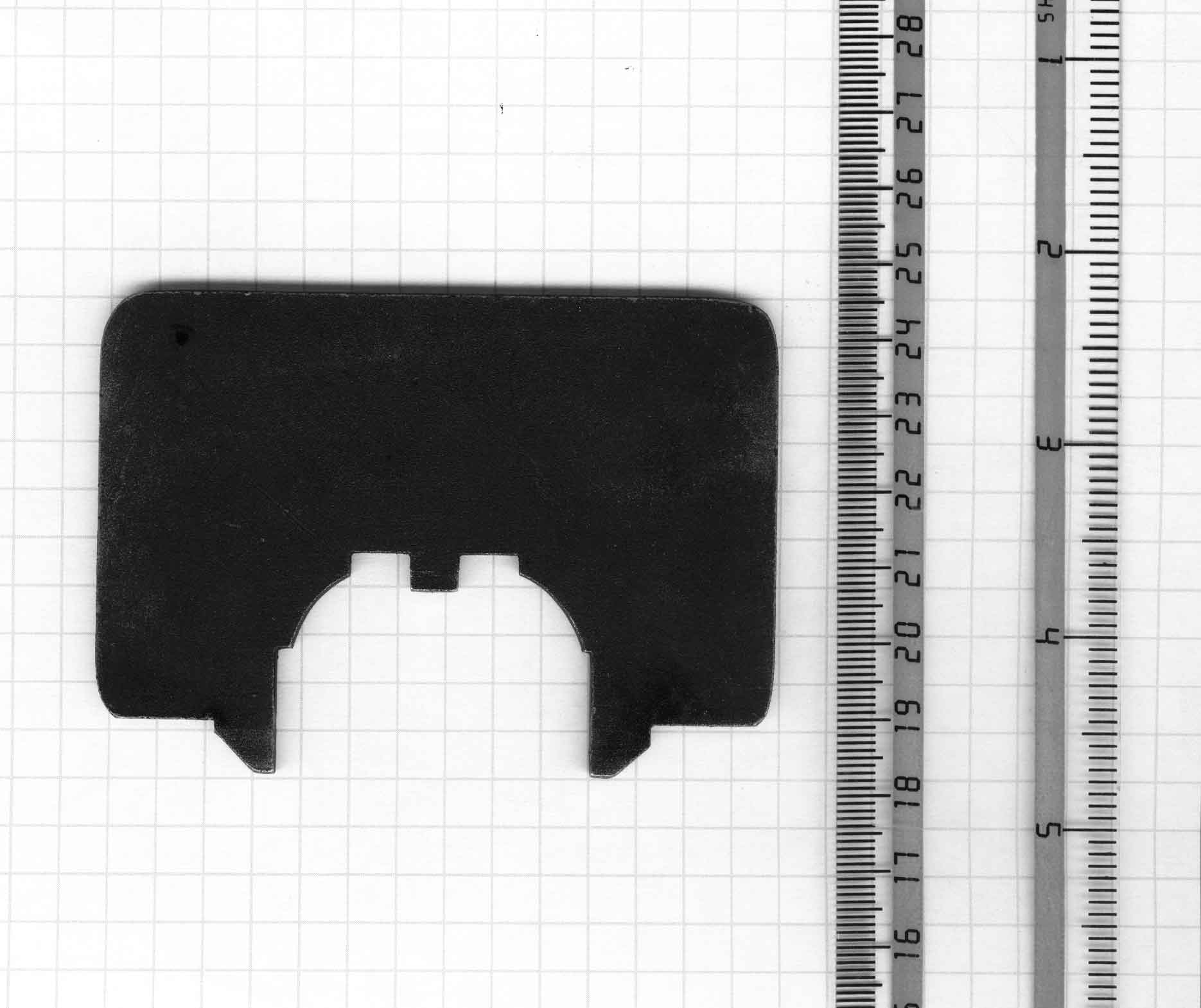

This is a template for the tool required to set the valve timing on Jaguar XK engines.

Print it out at 300 dpi and it should be accurate. A scale is included to confirm the size.

This is a thumbnail of the actual large image. Click on the picture at left to load the full size image.
